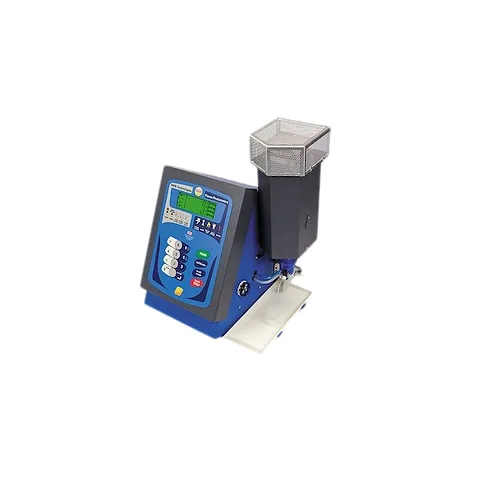

فلیم فتومتر BWB مدل XP

Sample rate

2 – 3.5ml/min

Tubing materials

Silicone and Tygon®

Required desk space for Instrument

50cm (H) x 45cm (W) x 45cm (D)*

For Safety reasons the Flame photometer requires 1m of unobstructed space above to allow dissipation of heat from the chimney.

Instrument size

XP Flame Photometer
51cm (H) x 39cm (W) x 35cm (D)
(20in x 15in x 14in)

Shipping
65cm (H) x 49cm (W) x 43cm (D)
(25in x 19in x 17in)

Weight

XP Flame Photometer – 14kg (30.8lbs)

Shipping – 25kg (55.1 lbs)

Power requirements

100V – 250V AC at 50 or 60Hz automatically selecting

Readout

LCD, four line, alpha numeric, back lit.

Optimal range

Single point calibration

Na 0.1 – 60ppm

K 0.05 – 100ppm

Li 0.05 – 50ppm

Ca 1.0 – 100ppm

Ba 1.6 – 100ppm

Multi Point Calibration

Na 0.1 – 1000ppm

K 0.05 – 1000ppm

Li 0.05 – 1000ppm

Ca 1.0 – 1000ppm

Ba 5.0 – 3000ppm

Reproducibility

<1% Coefficient of variability for 20 consecutive samples over ten minutes at concentrations of 100ppm or less. (After instrument stabilisation).

Specificity

Na/K/Li = <1% to each other when equal in concentration at <100ppm

Limit of detection (LOD) and
limit of quantification (LOQ)

LOD                          LOQ

Na – 0.03ppm      Na – 0.1ppm

K – 0.02ppm         K – 0.05ppm

Li – 0.02ppm         Li – 0.05ppm

Ca – 0.3ppm          Ca – 1ppm

Ba – 1.6ppm           Ba – 5.0ppm

Time to stability

Less than 15 seconds after sample is introduced into the flame.

Ions measured

Simultaneous measurement of Na, K, Li, Ca, Ba

Interfaces

USB

0-2.5 volt output (based on sample concentration linked to element of users choice)

Optional 4-20mA output in place of the above

Optional integrated printer

.csv and .pdf generated reports and files via FP-PC software

Recommended minimum warm up time based on ambient temperature

21ºC – 25 minutes

Fuel requirement

Propane, Butane or Natural Gas* regulated to 19Bar. Flow rate of 0.4l/min

*with modifications. BWB Technologies recommends either Propane or Butane for optimum results.
