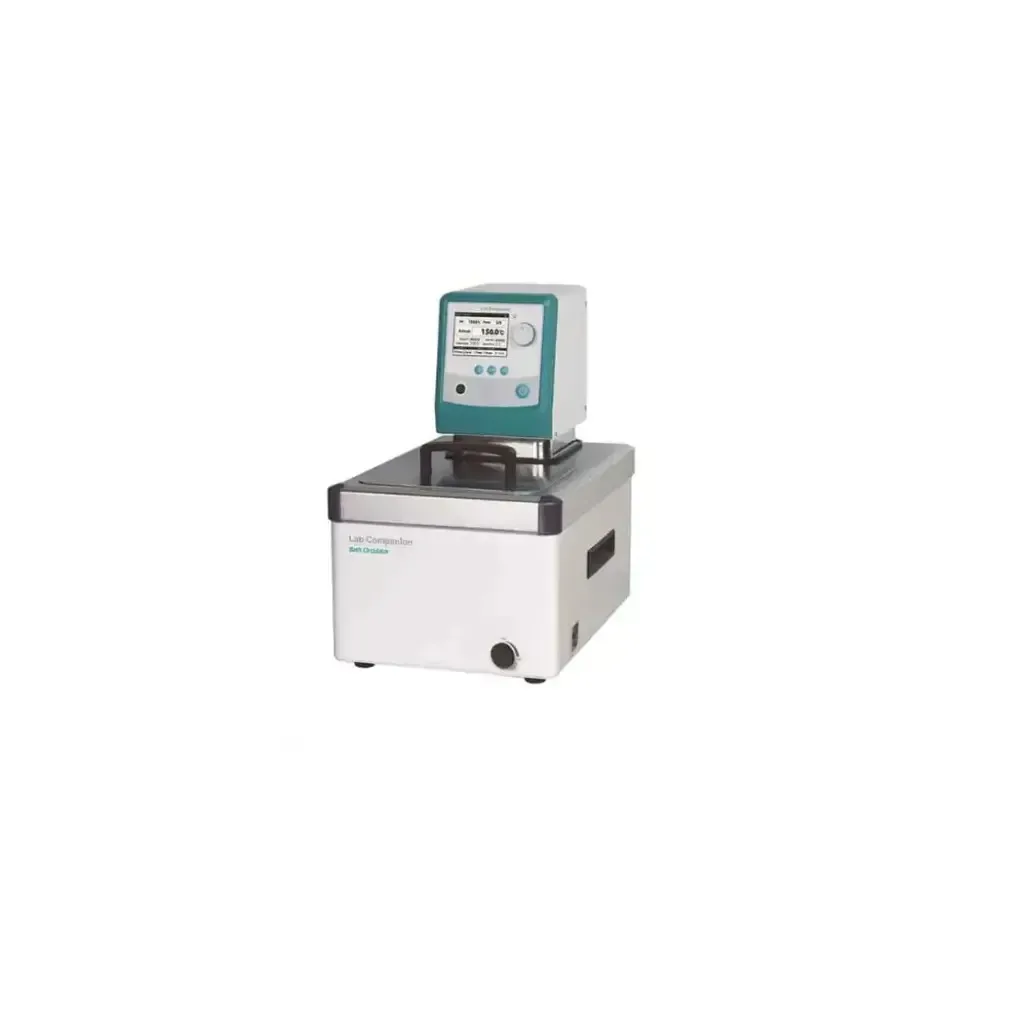

حمام آب Scilogex مدل CW3-10P

Program Type Features

• 10 Programs & 10 steps program control
• Set time up to 99 hours and 59 minutes per step.
• Intuitive operation with color touch display.
• Digital Input / Output function makes it easy to connect external equipment.

Structural Functional Features

• Minimizes evaporation of internal solution at high temperatures and low-heat conductivity bath cover is provided as standard.
• Minimized usage space with compact design.
• Excellent durability even at high temperatures and repeated us.
• Internal circulation and internal/external circulation of solution.
• Easy to move and manage with the body handle.
• Stainless steel material inside and at the top of the bath is excellent in terms of corrosion resistance and clean maintenance.
• Drain valve for easy draining of bath solution.
• Includes rubber feet for stable product operation.
• 5-steps pump speed adjustment with simple operation.

Outstanding Safety

• Top-rated overheating protection system. (Registration KR 10-0397583)
• Over temperature limiting function.
• Prevention of mal-operation with controller lock function.
• Check and alert of temperature sensor abnormality.
• If an error occurs during operation, the details of the error are displayed on the screen and an alarm is sounded.
• Safe structure in which the heater, sensor, and pump inside the bath are separated by covering plates.

Use Convenience Features

• Temperature calibration of up to 3 points provides more reliable temperature control.
• Optimized control with auto-tuning.
• Save and use 3 frequently used temperatures.
• Wait On/Off timer. (up to 999 hours 59 minutes)
• Microprocessor PID method for precise temperature control.
• Convenient remote control and data management through built-in dedicated software.
• Notification of low solution. (low level limiter)
• Automatic restart of operation when power is restored after power failure.
• Monitor via mobile app anytime, anywhere with LC Connected. (mobile monitoring system)
• (when purchased LC GreenBox)

Specification

• Bath volume (L / cu ft) 5 / 0.2
• Temperature
  – Working temp. range (℃ / ℉) Amb. +10 to 150 / Amb. +18 to 302
  – Temp. stability (±℃ / ℉) 0.05 / 0.09
  – Heat up time to 70℃ / 158 ℉ (min) 24
• Dimension
  – Bath opening / depth (W x L, D) (mm / inch): 150 x 99 x 160 / 5.9 x 3.9 x 6.3
  – Exterior (W x L x H) (mm / inch): 228 x 395 x 424 / 9.0 x 15.6 x 16.7
• Net weight (kg / lbs): 12.5 / 27.6
  – Electrical requirements: (120V, 60Hz, A) 8.6A
